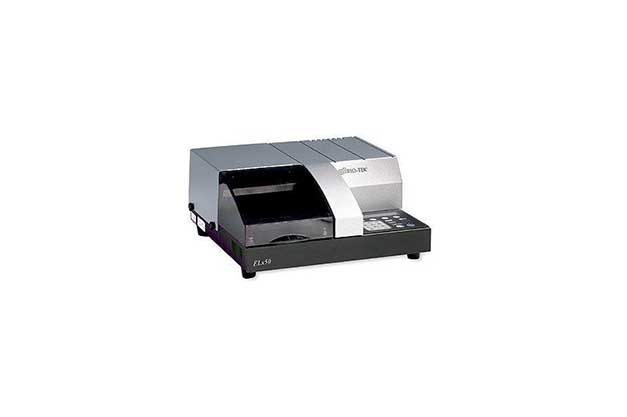

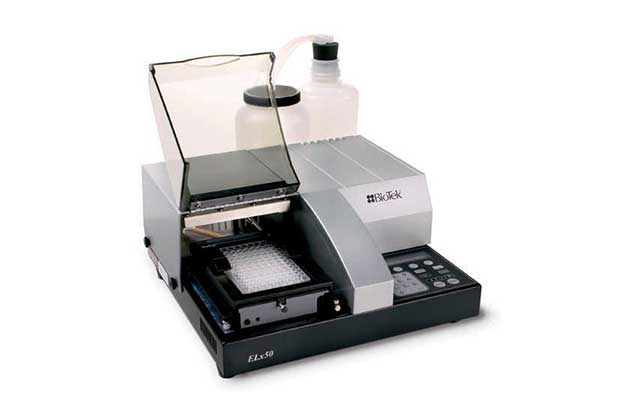

BioTek's years of experience in the development of both microplate washers and automated systems for EIA applications has culminated in the ELx50™ Strip Washer. As a self contained and programmable instrument, the ELx50 allows for full control of precise fluidic delivery from the gentle dripping of a simple squeeze bottle to the full force of pressure delivery systems.

The new ELx50 Washer is now a truly flexible platform that provides washing capabilities unsurpassed in its class. Newly available models with biomagnetic separation and vacuum filtration capabilities make the ELx50 an excellent choice for automating the wash steps of 96-well magnetic or polystyrene bead assays, such as those developed on the Luminex® xMAP® technology platform. The ELx50 Washer is Luminex® xMAP® approved.Users not requiring an integrated stacker can expect the same great bead washing performance as BioTek’s industry leading full plate washers but here in a more compact footprint.  Comprehensive onboard software makes programming quick and easy. Custom magnets, in either flat or ring designs, incorporate high-energy neodymium iron boron magnets for rapid separation of micrometer and nanometer magnetic beads with superior retention. A fast and efficient vacuum filtration module allows vacuum to be adjusted with a range of settings for flexibility with polystyrene beads when using various filter pore sizes and sample viscosities. The vacuum filtration module is also well suited for filtration-to-waste processes such as PCR cleanup after DNA amplification to remove unwanted residues or reaction by-products with filtrate.  The washer’s modular platform allows for processing standard solid bottom plates used in a laboratory’s many traditional ELISAs and cell based assays.

The ELx50 can also be equipped with our Dual-Action™ 16-channel manifold. This breakthrough design allows for independent control of the dispense and aspiration manifolds for overfill washing and overflow protection in both 96- and 384-well formats. The problem of fitting dispense and aspirate tubes into a much smaller 384-well is solved with the ELx50. Additionally, in a 96-well format, the Dual-Action manifold provides incomparable wash performance with two sets of dispense and aspiration tubes per well. This exclusive method of two-fold aspiration guarantees low residuals.

As a welcome upgrade from manual processing, the new ELx50 Microplate Strip Washer will bring to your lab an all inclusive wash solution offering consistent performance and unattended operation.

High Strength Biomagnetic Separation	Fast and Efficient Vacuum Filtration
The ELx50's custom magnet designs incorporate high-energy neodymium iron boron magnets for rapid separation of micrometer and nanometer beads with superior retention.	An available vacuum filtration module automates the washing of 96-well filter bottom plates. Vacuum is adjusted via a range of settings for optimal performance with various filter pore sizes.

 Automated Liquid Level Sensing

The Liquid Level Alert™ option allows users the convenience of continuous monitoring for both supply and waste bottles. At the beginning and end of a wash protocol, the liquid level is verified to ensure sufficient wash buffer remains in the designated dispense bottle to complete a microplate wash. Sufficient storage capacity in the waste bottle is also verified.

Dual-Action™ Manifold

The ELx50/16 offers incomparable wash results for 96- and 384-well microplates. In 96-well format, the unique design incorporates two sets of dispense and aspiration tubes per well.

US Federal Government customers: This product is available on GSA contract. Contact BioTek Customer Care with questions or submit a Quote Request Form to receive pricing and information on specific models (please note GSA Contract in the Comments field).

xMAP® is a registered trademark of Luminex® Corporation.
