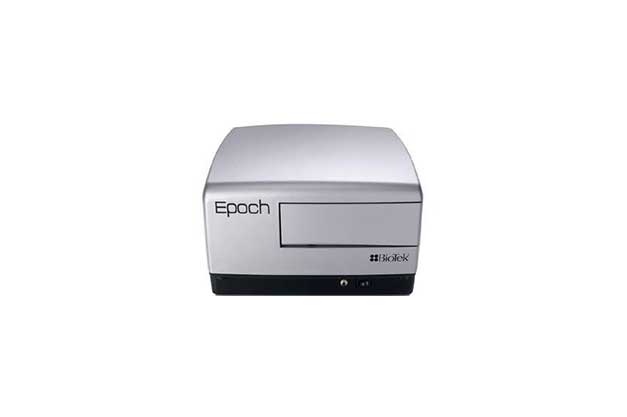

Epoch Microplate Spectrophotometer

مشخصات دستگاه

این دستگاه آشکارسازی را با استفاده از Absorbance انجام می دهد. هم چنین این دستگاه قادر است که طول موج بین 200 تا 999 نانومتر را اندازه کند. دستگاه با اتصال به کامپیوتر و با کمک نرم افزار Gen5 کنترل می شود. هم چنین بنا به مدل آن می تواند کار انکوباسیون را نیز انجام دهد. در صورتی که Plate Take3 نیز خریداری شود این دستگاه می تواند کار نانودراپ را نیز انجام دهدو با استفاده از کووت و بیوسل و یا میکرو اسپات آزمایش مورد نظر را انجام داد.

Epoch™ has a monochromator-base UV-Vis wavelength selection, offering expanded options for the life science laboratory without using interference filters, building in inherent cost savings. With its 200 nm to 999 nm wavelength range and 6- to 384- microplate reading capability, controlled with the Gen5 Data Analysis software interface, Epoch fills a void in today’s laboratory through smart design and superior features. This robust, low maintenance microplate spectrophotometer ensures even greater value over time. BioStack and 3rd party automation capability is available with the optional Epoch R model.

200 nm to 999 nm in 1 nm increments
6- to 384- well plate reading capability
Gen5™ Microplate Data Analysis Software included
Automated pathlength correction for direct quantification
Integrated detector & electronics for low-noise measurements
Robust housing design for longevity even under heavy usage
Take3™ Micro-Volume Plate compatibility for low volume nucleic acid quantification, BioCell or cuvette measurements
Wavelength scanning, end point, kinetic and well area scanning

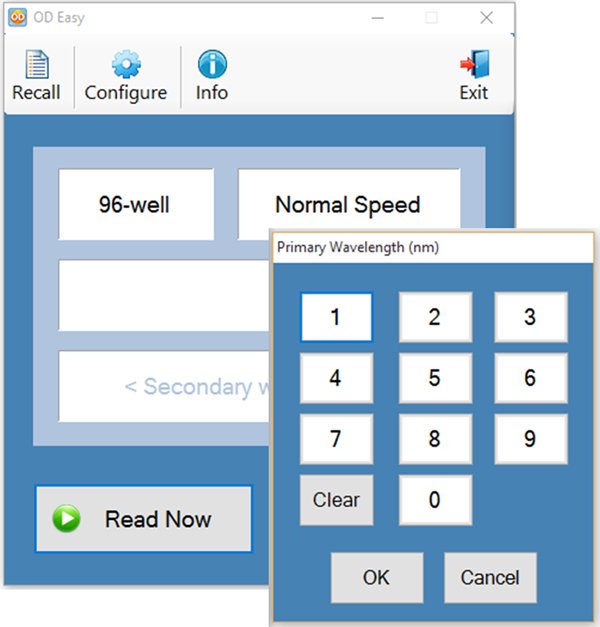

New OD Easy app for quick and easy end-point measurements!

Start reading in as few as 1 click
Recall recently used settings
View/print reports, export to .txt or Excel
Generates and saves Gen5 .xpt file for advanced analysis

OD Easy offers a simple interface for quick absorbance measurements.

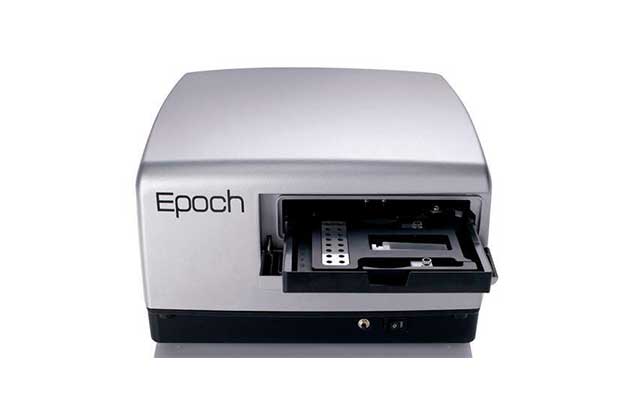

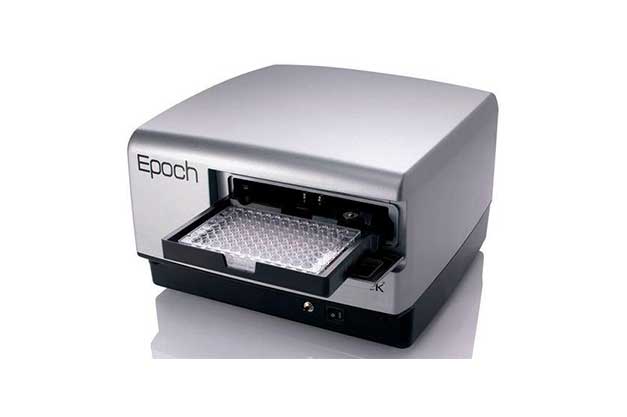

Epoch
Microplate Spectrophotomete

EPOCHR
EpochR - Microplate Spectrophotometer, BioStack and 3rd party compatible.

General
Detection modes	Absorbance
Read methods	Endpoint, kinetic, spectral scanning, well area scanning
Microplate types	6- to 384-well plates
Other labware supported	Take 3 Micro-Volume Plates
Software	Gen5™ Data Analysis Software Gen5 Secure for 21 CFR Part 11 compliance (option)
Automation	BioStack™ and 3rd party automation compatible ('R' configuration)
Absorbance
Light source	Xenon flash
Detector	photodiode
Wavelength selection	monochromator
Wavelength range	200 to 999 nm, in 1 nm increments
Monochromator bandwidth	5 nm
Dynamic range	0 - 4.0 OD
Resolution	0.0001 OD
Pathlength correction	yes
Monochromator wavelength accuracy	+ 2 nm
Monochromator wavelength repeatability	+ 0.2 nm
OD accuracy	0 to 2 OD: +1% +0.010 OD 2 to 2.5 OD: +3% +0.010 OD
OD linearity	0 to 2 OD: +% +0.010 OD 2 to 2.5 OD: +3% +0.010 OD
OD repeatability	0 to 2 OD: +1% +0.005 OD 2 to 2.5 OD: +3% +0.005 OD
Reading speed (kinetic)	96 wells: 15 seconds 384 wells: 31 seconds
Physical Characteristics
Power	100 - 240 Volts AC. 50/60 Hz.
Dimensions	12" W x 12.5" D x 7.7" H (30.5 cm x 31.8 cm x 19.6 cm)
Weight	<15 lbs (6.8 kg)
Regulatory
Regulatory	CE and TUV marked. ROHS compliant. In Vitro Diagnostic use models are available.

Specifications are subject to change. Performance values represent the average observed factory test values.

Standard (Included)

Gen5 Microplate Reader and Imager Software

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some instruments come with a specific edition of Gen5, please check the microplate reader specifications.

Optional

BioStack Microplate Stacker

BioStack™ is a compact and versatile microplate stacker compatible with BioTek’s washers, dispensers, detectors and imaging systems. BioStack offers rapid plate exchange speeds to increase throughput and enhance productivity, accommodating assay workflows both with and without plate lids.

Standard (Included)
Operators Manual
MANUAL	Operator's manuals can be obtained via the Customer Resource Center

Optional
Adapters and Labware Holders
7200519	PC Shelf
7302030	Cuvette Adapter
BioStack Integration Kits
7310043	BioStack Integration Kit for Epoch R
Miscellaneous
7210515	3-Instrument Rack – for third party robotic system integration
7270512	BioCell Adapter Plate Assembly
7272051	BioCell 1 cm Quartz Vessel
Product Qualification Packages
7200515	Epoch Qualification Package
Software Options
GEN5SECURE	Gen5 Secure
GEN5IVD	Gen5 IVD
Gen5	Gen5 Data Analysis Software
GENRC	Gen5 Reader Control (RC)
Take3 Micro-Volume Plate
TAKE3	Take3 Micro-Volume Plate
Take3TRIO	Take3 Trio Micro-Volume Plate
Test Plates & Reagents
7260522E	Absorbance Test Plate
7260551	340 nm Absorbance Test Plate
