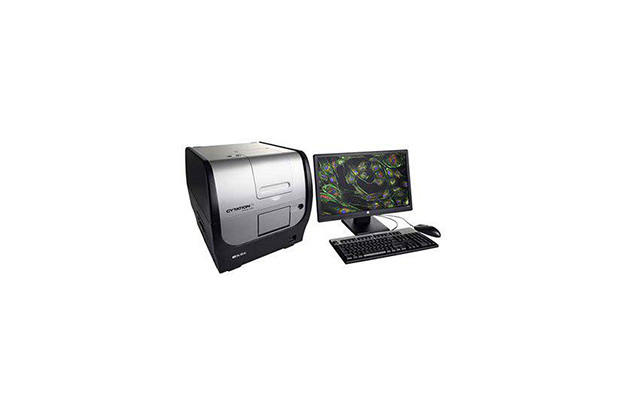

Cytation 3 Cell Imaging Multi Mode Reader

مشخصات دستگاه

Patented Technology

Cytation™ 3 is a cell imaging multi-mode microplate reader that combines automated digital microscopy and conventional microplate detection.  This unique patent pending design provides rich phenotypic cellular information with well-based quantitative data. Equipped with BioTek’s patented Hybrid Technology™ for microplate detection, Cytation 3 includes both high sensitivity filter-based detection and a flexible quadruple monochromator based system for unmatched versatility and performance. The upgradable fluorescence cellular imaging module, with up to 60x magnification provides researchers rich cellular visualization analysis without the complexity and expense of standard automated microscopes, making cell imaging more accessible to a larger number of research laboratories at an affordable price.

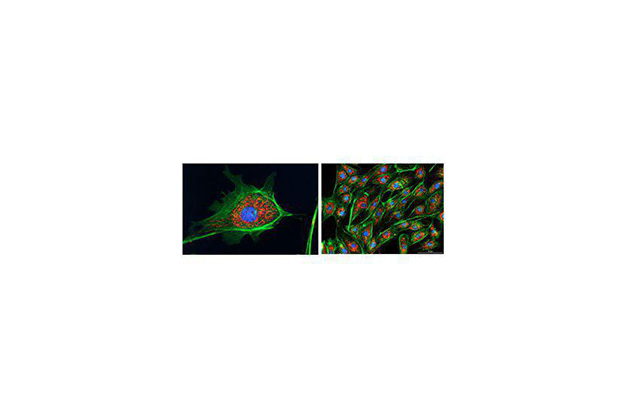

Fluorescence microscopy is a powerful technique for visualizing cellular responses to understand cell proliferation, protein expression, cytotoxicity and other expressions. The ability to perform both conventional quantitative fluorescence measurements and cell imaging takes cell biology research to another level.  With special emphasis on live-cell assays, Cytation 3 features temperature control to 45 °C, CO2/O2 gas control, orbital shaking and full support for time lapse studies with BioTek’s Gen5™ software, specifically designed to make plate reading and image capture easy.

Technology advances are found throughout Cytation 3’s including high-intensity LED light sources, filter cubes optimized for high signal/noise ratio, hard coated optical filters, Olympus objectives, and superior autofocus for totally software controlled microscopy.

Cytation 3 is the recipient of the 2013 SelectScience Drug Discovery Product of the Year Award, 2013 Miptec New Product Innovation Award, Thermo Fisher Scientific “Extraordinary New Product Line Award” and  2014 Silver Edison Award.


 Take3 Trio Compatible

  • Automated digital microscopy and/or multi-mode microplate detection in one instrument

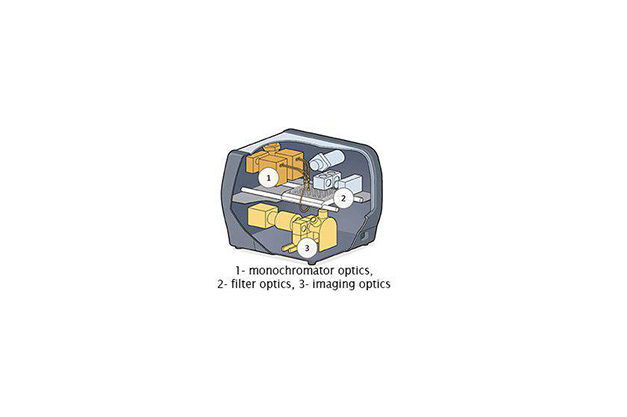

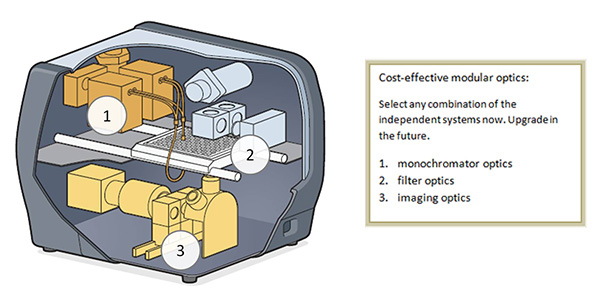

  • Modular and upgradable: microscopy only, microplate reading only, or both
  • Flexible sample format: 6- to 384-well plates, microscope slides, cell culture flasks and Petri dishes
  • Affordable automation: automated XY stage, auto focus, auto exposure, automated image capture, LED intensity
  • Inverted fluorescence and brightfield microscopy
  • High Power LED cubes that provide superior excitation energy and long life
  • Optimized epifluorescence filter cubes for superior sensitivity for commonly used fluorophores: DAPI, CFP, GFP, YFP, RFP, Texas Red, CY5 and CY7
  • From 1.25x for full-well imaging to 60x for sub-micron resolution for intra-cellular details
  • High quality images: Olympus objectives, 16-bit gray scale CCD camera, Semrock filters.
  • Live cell assays with temperature control up to 45 °C, CO2/O2 gas control accessory option

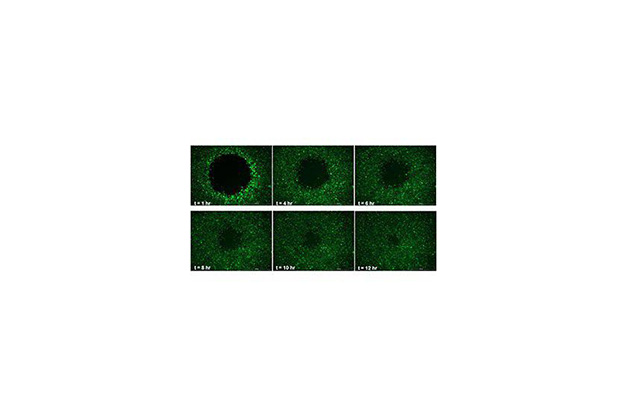

  • Endpoint, time-lapse and montage assays

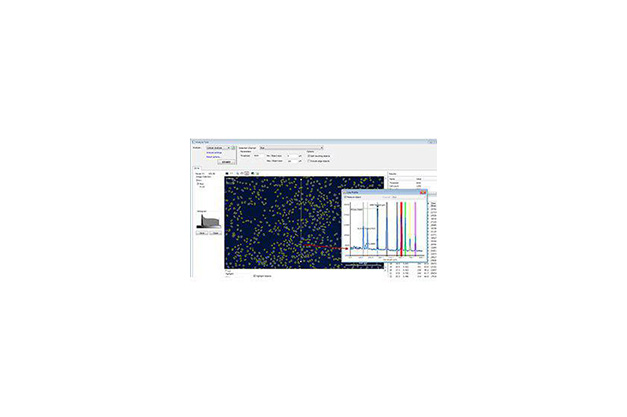

  • Automatic cell counting, sub-population analysis and image statistics
  • Dual reagent injectors available
  • Patented Hybrid Technology™ microplate reading mode with high performance filter-based optics and high-flexibility quadruple monochromator optics
Part #
CYT3MFV
CYT3MV
CYT3FV
CYT3V
CYT3MF
CYT3M
CYT3F
Fluorescence and brightfield imaging
•
•
•
•

Monochromator fluorescence
•
•


•
•

Monochromator absorbance
•
•

•
•

Filter/dichroic fluorescence
•

•

•

•
Fluorescence polarization
•

•

•

•
Time resolved fluorescence
•
•*
•

•
•*
•
Luminescence
•
•
•

•
•
•
Filtered luminescence
•

•

•

•
Temperature control to 45°C
•
•
•
•
•
•
•
Linear, orbital, double-orbital shaking
•
•
•
•
•
•
•
Gas controller compatible**
•
•
•
•
•
•
•
Dual reagent injector compatible**
•
•
•
•
•
•
•
Gen5 Microplate Reader and Imager Software
•
•
•
•
•
•
•
* TRF is secondary mode in monochromator-only configurations
**Gas controller module and dual reagent injector module sold separately.

Non-"V" configurations can be upgraded to add fluorescence and brightfield imaging
"V" configurations can be upgraded to add monochromator and/or filter-based multi-mode detection
General
Detection modes UV-Vis absorbance
Fluorescence intensity
Luminescence
Fluorescence polarization
Time-resolved fluorescence
Read methods Endpoint, kinetic, spectral scanning, well area scanning
Microplate types Monochromator: 6- to 384-well plates
Filters: 6- to 1536-well plates
Imaging: 6- to 1536-well plates
Other labware supported Microscope slides, Petri and cell culture dishes, cell culture flasks (T25)
Take3 Micro-Volume Plates
Temperature control 4-Zone incubation to 45 °C with Condensation Control; +0.2 °C at 37 °C
Shaking Linear, orbital, double orbital
Software Gen5™ Microplate Reader and Imager Software
Gen5 Secure for 21 CFR Part 11 compliance (option)
Automation BioStack and 3rd party automation compatible
CO2 and O2 control (option) Range: 0 - 20% (CO2); 1 - 19% (O2)
Control Resolution: +0.1% (CO2 and O2)
Stability: +0.2% at 5% CO2; +0.2% at 1% O2
Models for both CO2 and O2 or CO2 only are available
Imaging System
Imaging mode Fluorescence
Brightfield
Imaging method Single color, multi-color, montage, time lapse, z-stacking
Image processing Z-projection, digital phase contrast, stitching
Camera 16-bit gray scale, Sony CCD, 1.25 megapixel.
0.3 µm/pixel at 20x
Objective capacity 2 user-replaceable objectives
Objectives available 1.25x, 2.5x, 4x, 10x, 20x, 40x, 60x
Image filter cube capacity 4 user-replaceable fluorescence cubes plus brightfield channel
Imaging filter cubes available DAPI, CFP, GFP, YFP, RFP, Texas Red, CY5, CY7,Acridine Orange (ACR OR), CFP-YFP FRET, propidium,Iodide, chlorophyll, phycoerythrin, CY5.5, TagBFP
Imaging LED cubes available 365 nm, 390 nm, 465 nm, 505 nm, 523 nm, 590 nm, 623 nm, 655 nm, 740 nm
Automated functions User-trained autofocus, autofocus, autoexposure, auto-LED intensity
Autofocus method Image-based autofocus
User-trained autofocus
Laser autofocus (option)
Positional controls Software control
Image collection rate Image-based autofocus:
96 wells, 1 color (DAPI), 4x, 6 minutes
96 wells, 3 colors, 4x, 12 minutes

Laser autofocus:
96 wells, 1 color (DAPI), 4x, <3 minutes
96 wells, 3 colors, 4x, <7 minutes, 30 seconds
Image Analysis Software option Gen5 Image+: Advanced image analysis
Gen5 Secure Image+: Advanced image analysis, 21 CFR Part 11 features
Fluorescence Intensity
Light source Xenon flash
Detector PMT for monochromator system
PMT for filter system
Wavelength selection Quad monochromators (top/bottom)
Filters (top)
Wavelength range Monochromators: 250 - 700 nm (850 nm option)
Filters: 200 - 700 nm (850 nm option)
Monochromator bandwidth Fixed, 16 nm
Dynamic range 5 decades
Sensitivity Filters:
Fluorescein 0.25 pM (0.025 fmol/well, 384-well plate)

Quad Monochromator:
Fluorescein 2.5 pM (0.25 fmol/well, 384-well plate) - top
Fluorescein 4 pM (0.4 fmol/well, 384-well plate) - bottom
Reading speed (kinetic) 96 wells: 11 seconds
384 wells: 22 seconds
Luminescence
Wavelength range 300 - 700 nm
Dynamic range >6 decades
Sensitivity Monos: 20 amol ATP (flash)
Filters: 10 amol ATP (flash), 100 amol (glow)
Fluorescence Polarization
Light source Xenon flash
Detector PMT
Wavelength selection Filters
Wavelength range 280 - 700 nm (850 nm option)
Sensitivity 1.2 mP standard deviation at 1 nM fluorescein
Time-Resolved Fluorescence
Light source Xenon flash
Detector PMT
Wavelength selection Quad monochromators (secondary mode)
Filters (top)
Wavelength range Filters: 200 - 700 nm (850 nm option)
Sensitivity Filters: Europium 40 fM (4 amol/well, 384-well plate)
Monos: Europium 1200 fM (120 amol/well, 384-well plate)
Absorbance
Light source Xenon flash
Detector photodiode
Wavelength selection monochromator
Wavelength range 230 to 999 nm, in 1 nm increments
Monochromator bandwidth 4 nm (230-285 nm), 8 nm (>285 nm)
Dynamic range 0 - 4.0 OD
Resolution 0.0001 OD
Pathlength correction yes
Monochromator wavelength accuracy +2 nm
Monochromator wavelength repeatability +0.2 nm
OD accuracy <1% at 2.0 OD
<3% at 3.0 OD
OD linearity <1% from 0 to 3.0 OD
OD repeatability <0.5% at 2.0 OD
Stray light 0.03% at 230 nm
Reading speed (kinetic) 96 wells: 11 seconds
384 wells: 22 seconds
Reagent Injectors (option)
Supported detection modes All modes
Number 2 syringe pumps
Supported labware 6- to 384-well plates, Petri dishes
Dead volume 1.1 mL, 100 µL with back flush
Dispense volume 5 - 1000 µL in 1 nm increments
Dispense accuracy +1 µL or 2%
Dispense precision <2% at 50-200 µL
Physical Characteristics
Power 250 Watts max.
Dimensions 20" D x 16.5" W x 17.5" H
(50.8 cm x 41.91 cm x 44.5 cm)
Weight 80 lbs (36.3 Kg)
Regulatory
Regulatory CE and TUV marked. RoHS Compliant. Models for In Vitro Diagnostic use are available.

Standard (Included)

Gen5 Microplate Reader and Imager Software

Gen5 Microplate Reader and Imager Software

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some instruments come with a specific edition of Gen5, please check the microplate reader specifications.


Optional

BioSpa 8 Automated Incubator

BioSpa 8 Automated Incubator

BioSpa 8 is an automated incubator linking BioTek readers or imagers together with washers and dispensers for full workflow automation of up to 8 microplates. Temperature, CO2/O2 and humidity levels are controlled and monitored through the BioSpa software to maintain an ideal environment for cell cultures during all experimental stages.


BioStack Microplate Stacker

BioStack Microplate Stacker

BioStack™ is a compact and versatile microplate stacker compatible with BioTek’s washers, dispensers, detectors and imaging systems. BioStack offers rapid plate exchange speeds to increase throughput and enhance productivity, accommodating assay workflows both with and without plate lids.


Optional

Adapters and Labware Holders

1220548 Slide adapter accessory has picture
1222210 T25 cell culture flask adapter accessory has picture
1222240 Petri dish adapter 38.7 mm max accessory has picture
1222241 Petri dish adapter 60 mm accessory has picture
1222242 Petri dish adapter 100 mm accessory has picture
1222246 Petri dish adapter 35.5 mm max accessory has picture
1322144 Adapter, Trevigen CometChip
1450541 Multi-vessel adapter accessory has picture

BioSpa 8 Integration Kits

1410008 Alignment kit for Synergy Neo2 and Cytation 3/5

BioStack Integration Kits

7310053 BioStack Integration Kit for Cytation

Filter Accessories

7082073 Plug (Dummy filter) for Synergys and FLx800 accessory has picture
7082075 Retainer Clip for Synergys and FLx800 accessory has picture

Filter Cubes

8040501 Filter Cube: Blue (360/460) / Green (485/528) accessory has picture
8040502 Filter Cube: Green (485/528) / Red (530 / 590) accessory has picture
8040505 Filter Cube: HTRF® – TR-FRET accessory has picture
8040506 Filter Cube: LanthaScreen – TR-FRET accessory has picture
8040507 Filter Cube: Lance – TR-FRET accessory has picture
8040553 Filter Cube – Luminescence accessory has picture
8040555 TRF cube
8040561 Filter Cube: Green FP (485/528) accessory has picture
8040562 Filter Cube: Red FP (530 / 590) accessory has picture
8040563 Blue/UV FP filter set: 360/40 EX, 460/40 EM, 400 nm mirror, UV polarizers
8040564 Empty Filter Cube - Fluorescence Polarization Visible (excitation > 400nm)
8040565 Empty Filter Cube - Fluorescence Polarization UV (excitation between 300 and 400 nm)
8040566 Empty Filter Cube - non FP applications
8040578 Deep UV FP 284/340

Filters

7092146 276/10 nm Fluorescence Filter accessory has picture
7092148 280/10 nm Fluorescence Filter accessory has picture
7082259 284/10 nm Fluorescence Filter accessory has picture
7082248 310/20 nm Fluorescence Filter accessory has picture
7082250 320/20 nm Fluorescence Filter accessory has picture
7092205 325/50 nm Fluorescence Filter accessory has picture
7092150 330/20 nm Fluorescence Filter accessory has picture
7082263 330/80 nm Fluorescence Filter accessory has picture
7082254 340/11 nm Fluorescence Filter accessory has picture
7082230 340/30 nm Fluorescence Filter accessory has picture
7092151 355/20 nm Fluorescence Filter accessory has picture
7082220 360/40 nm Fluorescence Filter accessory has picture
7092152 380/11 nm Fluorescence Filter accessory has picture
7082228 380/20 nm Fluorescence Filter accessory has picture
7092153 395/25 nm Fluorescence Filter accessory has picture
7082242 400/10 nm Fluorescence Filter accessory has picture
7082205 400/30 nm Fluorescence Filter accessory has picture
7092154 405/20 nm Fluorescence Filter accessory has picture
7092155 410/10 nm Fluorescence Filter accessory has picture
7092200 410/80 nm Fluorescence Filter accessory has picture
7082270 420/27 nm Fluorescence Filter accessory has picture
7082206 420/50 nm Fluorescence Filter accessory has picture
7082227 440/30 nm Fluorescence Filter accessory has picture
7082207 440/40 nm Fluorescence Filter accessory has picture
7082208 450/50 nm Fluorescence Filter accessory has picture
7082222 460/40 nm Fluorescence Filter accessory has picture
7092157 470/40 nm Fluorescence Filter accessory has picture
7092158 475/20 nm Fluorescence Filter accessory has picture
7082221 485/20 nm Fluorescence Filter accessory has picture
7082209 485/40 nm Fluorescence Filter accessory has picture
7092160 490/10 nm Fluorescence Filter accessory has picture
7082268 495/10 nm Fluorescence Filter accessory has picture
7092162 500/20 nm Fluorescence Filter accessory has picture
7082256 500/27 nm Fluorescence Filter accessory has picture
7082218 508/20 nm Fluorescence Filter accessory has picture
7092201 515/30 nm Fluorescence Filter accessory has picture
7082246 516/20 nm Fluorescence Filter accessory has picture
7092163 520/10 nm Fluorescence Filter accessory has picture
7092164 520/20 nm Fluorescence Filter accessory has picture
7092211 525/40NM Pierce Renilla-Firefly Dual Luciferase Green Renilla
7082247 528/20 nm Fluorescence Filter accessory has picture
7082223 530/25 nm Fluorescence Filter accessory has picture
7092166 530/30 nm Fluorescence Filter accessory has picture
7092167 532/40 nm Fluorescence Filter accessory has picture
7092168 540/15 nm Fluorescence Filter accessory has picture
7082249 540/25 nm Fluorescence Filter accessory has picture
7082253 540/35 nm Fluorescence Filter accessory has picture
7092169 540/45 nm Fluorescence Filter accessory has picture
7082210 545/40 nm Fluorescence Filter accessory has picture
7092170 550/10 nm Fluorescence Filter accessory has picture
7092171 556/10 nm Fluorescence Filter accessory has picture
7092172 560/10 nm Fluorescence Filter accessory has picture
7082215 560/15 nm Fluorescence Filter accessory has picture
7082211 560/20 nm Fluorescence Filter accessory has picture
7082212 560/40 nm Fluorescence Filter accessory has picture
7082271 565/10 nm Fluorescence Filter
7092173 570/10 nm Fluorescence Filter accessory has picture
7092174 575/10 nm Fluorescence Filter accessory has picture
7082245 575/15 nm Fluorescence Filter accessory has picture
7092175 580/10 nm Fluorescence Filter accessory has picture
7082244 580/50 nm Fluorescence Filter accessory has picture
7092176 585/10 nm Fluorescence Filter accessory has picture
7092177 590/10 nm Fluorescence Filter accessory has picture
7082225 590/20 nm Fluorescence Filter accessory has picture
7082224 590/35 nm Fluorescence Filter accessory has picture
7092178 596/15 nm Fluorescence Filter accessory has picture
7082252 600/40 nm Fluorescence Filter accessory has picture
7092179 610/10 nm Fluorescence Filter accessory has picture
7092207 615/10NM Lanthascreen Europium donor emission
7082265 620/10 nm Fluorescence Filter accessory has picture
7082251 620/15 nm Fluorescence Filter accessory has picture
7082213 620/40 nm Fluorescence Filter accessory has picture
7092180 625/10 nm Fluorescence Filter accessory has picture
7082214 635/32 nm Fluorescence Filter accessory has picture
7092182 645/10 nm Fluorescence Filter accessory has picture
7082226 645/40 nm Fluorescence Filter accessory has picture
7092183 660/10 nm Fluorescence Filter accessory has picture
7092208 665/10NM Lanthascreen Europium acceptor emission
7092184 665/34 nm Fluorescence Filter accessory has picture
7082266 665/8 nm Fluorescence Filter accessory has picture
7092185 670/10 nm Fluorescence Filter accessory has picture
7092186 670/20 nm Fluorescence Filter accessory has picture
7092187 680/10 nm Fluorescence Filter accessory has picture
7092188 680/20 nm Fluorescence Filter accessory has picture
7082229 680/30 nm Fluorescence Filter accessory has picture
7092189 690/10 nm Fluorescence Filter accessory has picture
7092190 700/20 nm Fluorescence Filter accessory has picture
7092191 710/20 nm Fluorescence Filter accessory has picture
7092192 730/40 nm Fluorescence Filter accessory has picture
7092193 760/20 nm Fluorescence Filter accessory has picture
7092194 760/34 nm Fluorescence Filter accessory has picture
7092195 781/20 nm Fluorescence Filter accessory has picture
7092196 785/20 nm Fluorescence Filter accessory has picture
7092197 807/25 nm Fluorescence Filter accessory has picture
7092198 818/40 nm Fluorescence Filter accessory has picture
7092209 LP610NM Chromaglo red emitting luciferase
7092210 LP640NM Pierce Renilla-Firefly Dual Luciferase Red Firefly

Imaging Filter Cubes

1225100 DAPI Filter cube accessory has picture
1225101 GFP Filter cube accessory has picture
1225102 Texas Red Filter cube accessory has picture
1225103 RFP Filter cube accessory has picture
1225104 YFP Filter cube accessory has picture
1225105 CY5 Filter cube accessory has picture
1225106 CY7 Filter cube accessory has picture
1225107 CFP Filter cube accessory has picture
1225108 Empty imaging filter cube
1225109 Acridine Orange (ACR OR) filter cube accessory has picture
1225111 Propidium Iodide filter cube accessory has picture
1225112 Chlorophyll filter cube accessory has picture
1225113 Phycoerthyrin filter cube accessory has picture
1225114 Cy5.5 filter cube accessory has picture
1225115 TagBFP filter cube accessory has picture
1225116 GFP excitation - CY5 emission
1225117 RFP excitation - CY5 emission
1225118 CFP FRET V2 filter cube
1225119 CFP/YFP FRET V2 filter cube
1225121 Ex 377 Em 647 filter cube

Imaging LED Cubes

1225001 465 nm LED cube accessory has picture
1225002 590 nm LED cube accessory has picture
1225003 523 nm LED cube accessory has picture
1225004 505 nm LED cube accessory has picture
1225005 623 nm LED cube accessory has picture
1225006 740 nm LED cube accessory has picture
1225007 365 nm LED cube
1225008 655nm LED cube
1225009 390nm LED cube
1225011 405 nm LED cube

Imaging Objectives

1220517 Objective 20x mag
1220518 Objective 10x mag
1220519 Objective 4x mag
1220539 Objective 2.5x mag Zeiss (2.75x eff.)
1220544 Objective 40x mag (Requires Gen5 Image+)
1220545 Objective 60x mag (Requires Gen5 Image+)
1220549 Objective 2.5x mag (2.25x eff.)
1220562 1.25x Objective Olympus. NA: .04

Mirrors

7132121 Half-size dichroic mirror, 50%, Ex 200-850 nm, Em 200-850 nm accessory has picture
7137400 Full-Size Dichroic Mirror, Ex. 320-390, Em. 410-800 accessory has picture
7137435 Full-Size Dichroic Mirror, Ex. 385-425, Em. 445-610 accessory has picture
7137455 Full-Size Dichroic Mirror, Ex. 400-450, Em. 460-710 accessory has picture
7137510 Full-Size Dichroic Mirror, Ex. 440-505, Em. 515-640 accessory has picture
7137525 Full-Size Dichroic Mirror, Ex. 475-520, Em. 530-670 accessory has picture
7137545 Full-Size Dichroic Mirror, Ex. 512-535, Em. 555-578 accessory has picture
7137550 Full-Size Dichroic Mirror, Ex. 415-540, Em. 560-850 accessory has picture
7137555 Full-Size Dichroic Mirror, Ex. 541-550, Em. 560-595 accessory has picture
7137570 Full-Size Dichroic Mirror, Ex. 515-565, Em. 575-735 accessory has picture
7137595 Full-Size Dichroic Mirror, Ex. 540-590, Em. 600-770 accessory has picture
7138320 Half-Size Dichroic Mirror, Ex. 260-305, Em. 335-750 accessory has picture
7138365 Half-Size Dichroic Mirror, Ex. 290-350, Em. 380-800 accessory has picture
7138400 Half-Size Dichroic Mirror, Ex. 320-390, Em. 410-800 accessory has picture
7138435 Half-Size Dichroic Mirror, Ex. 385-425, Em. 445-610 accessory has picture
7138455 Half-Size Dichroic Mirror, Ex. 400-450, Em. 460-710 accessory has picture
7138510 Half-Size Dichroic Mirror, Ex. 440-505, Em. 515-640 accessory has picture
7138525 Half-Size Dichroic Mirror, Ex. 475-520, Em. 530-670 accessory has picture
7138545 Half-Size Dichroic Mirror, Ex. 512-535, Em. 555-578 accessory has picture
7138550 Half-Size Dichroic Mirror, Ex. 415-540, Em. 560-850 accessory has picture
7138555 Half-Size Dichroic Mirror, Ex. 541-550, Em. 560-595 accessory has picture
7138570 Half-Size Dichroic Mirror, Ex. 515-565, Em. 575-735 accessory has picture
7138595 Half-Size Dichroic Mirror, Ex. 540-590, Em. 600-770 accessory has picture
7138660 Half-Size Dichroic Mirror, Ex. 580-655, Em. 665-850 accessory has picture

Miscellaneous

1210007 Gas Controller for CO2 control. Includes CO2 flow meter & tubing set (p/n 1213032) accessory has picture
1210008 Gas Controller for CO2 and O2 control. Includes CO2 and N2 flow meters & tubing set (p/n 1213033 and p/n 1213032). accessory has picture
1210011 Calibration Kit for CO2 Controller
1220024 Laser autofocus retrofit kit for field installed Cytation and Lionheart FX
1220521 Anti-vibration plate
1225010 Laser autofocus cube for new Lionheart FX and Cytation imaging (“V”) configurations accessory has picture

Product Qualification Packages

1220514 Cytation 3 Product Qualification Package - IQ/OQ/PQ
1222520 Jig Assembly Tilt and Contrast (Autofocus)
1222531 40x/60x Setup Plate

Reagent Injector Assembly

8040003S Dual Reagent Injector Module accessory has picture

Reagent Injector Options

1320514 Angled tip injector head accessory has picture

Software Options

GEN5SECURE Gen5 Secure accessory has picture
GEN5IVD Gen5 IVD accessory has picture
GEN5SECUREIPLUS Gen5 Secure Image+ accessory has picture
GEN5IVDIPLUS Gen5 IVD Image+ accessory has picture
Gen5 Gen5 Data Analysis Software accessory has picture
GEN5IPLUS Gen5 Image+ accessory has picture
Gen5SECUREIPRIME Gen5 Secure Image Prime
Gen5IPRIME Gen5 Image Prime

Take3 Micro-Volume Plate

TAKE3 Take3 Micro-Volume Plate accessory has picture
Take3TRIO Take3 Trio Micro-Volume Plate accessory has picture

Test Plates & Reagents

7092092 Fluorescence Test Plate accessory has picture
7260522E Absorbance Test Plate accessory has picture
7260551 340 nm Absorbance Test Plate accessory has picture
8030015 Luminescence Test Plate accessory has picture

ONE COMPANY, ONE SOLUTION Since 2000

E-Mail: ceo@farayand.com
تلفن:72- 88334462 021
دورنگار: 88002310 021
آدرس: تهران، ميدان فاطمی، میدان گلها، خيابان كاج جنوبي،كوچه هشتم، پلاک 27
کد پستی: 1413874873
صندوق پستی: 14155/4415

شبکه های اجتماعی

محصولات اخیر

  • Microplate Reader
  • Autoclave
  • santrifuj
  • Microplate Washer
  • Incubators
  • PCR

خبرنامه

Scroll to Top
